应用范围 / Application
PP模块雨水回收系统几乎可以应用在任何需要雨水收集、调蓄和回用的场所,一些典型的场景包括:城市公共区域:如市政道路、广场、公园、运动场等,可收集雨水用于绿化灌溉、道路冲洗和景观补水。建筑与住宅区:适用于大型建筑小区、商业综合体、学校等,收集的雨水可用于冲厕、绿化、洗车等。工业园区与厂房:收集的雨水可用于厂区绿化、地面冲洗,甚至作为工业生产的冷却循环。交通设施:可用于停车场、道路沿线的排水和蓄水渗滤系统。 PP模块系统灵活高效,能有效实现雨水资源化、缓解城市内涝、改善生态环境,是海绵城市建设和水资源循环利用的重要技术。
The PP modular rainwater collection system can be applied in virtually any setting where rainwater harvesting, storage, and reuse are required. Typical application scenarios include: 1.Urban Public Areas - Such as municipal roads, plazas, parks, and sports fields. Collected rainwater can be used for green space irrigation, road flushing, and landscape water replenishment. 2.Residential and Commercial Buildings - Suitable for large residential communities, commercial complexes, schools, etc. The harvested rainwater can be used for toilet flushing, landscaping, and car washing. 3.Industrial Parks and Factories - Collected rainwater can be utilized for factory green space irrigation, ground washing, and even as cooling circulating water for industrial production. 4.Transportation Facilities - Applicable for parking lots and drainage and infiltration systems along roadways. The PP modular system is flexible and efficient, effectively enabling rainwater resource utilization, alleviating urban waterlogging, and improving the ecological environment. It represents a key technology for sponge city development and sustainable water resource recycling.
产品特点 / Product Features
聚丙烯模块地下拼装,可适应任意场地形状和容积需求
Underground assembled polypropylene modules adapt to any site shape and capacity requirement
镂空率达 95% 以上,储水空间大
Void ratio over 95% for maximum storage capacity
全地埋设计,不占用地面空间,不影响景观与功能使用
Fully buried design saves surface space without affecting landscaping or functionality
PP 材质抗压、耐酸碱、抗老化,承重能力强,上方可用作道路或停车场
PP material offers excellent compression, acid/alkali, and aging resistance; surface can be used as roads or parking lots
使用寿命可达 40–50 年以上
Service life of over 40–50 years
100% 可回收材料,无毒无污染,可拆卸异地重建
Made of 100% recyclable material, non-toxic and pollution-free; modules can be disassembled and relocated
工艺流程 / Process Flow

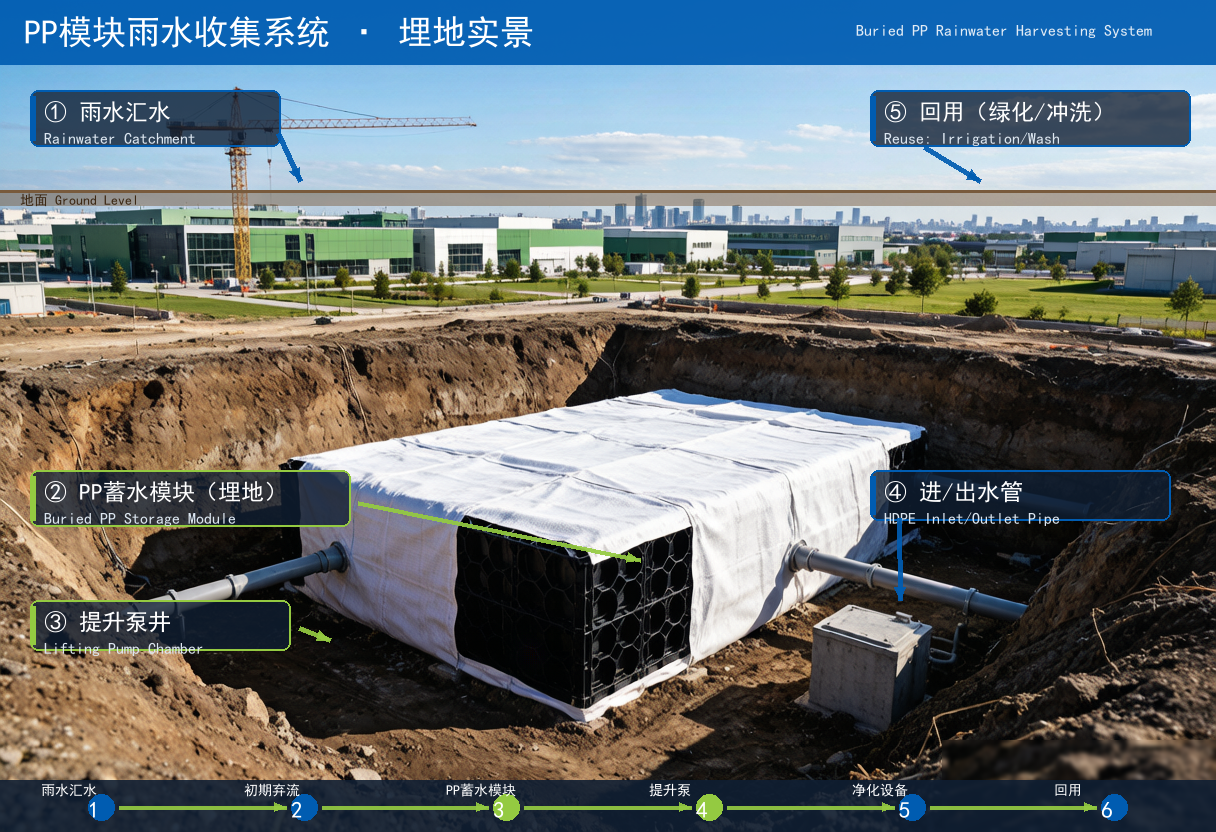

雨水从地面汇水口收集,先经过初期弃流装置把脏水排掉,干净的雨水再进入埋在地下的 PP 模块蓄水池里存起来。需要用的时候,提升泵把水抽上来,经过净化设备处理达标,最后送到绿化灌溉或道路冲洗的地方用掉。如果雨太大水池装满了,多余的水就从溢流口排进市政管网。整个过程靠控制系统自动运行。
Rainwater is collected from ground catchments and first passes through an initial diversion device to discharge the contaminated first-flush runoff. The cleaner rainwater then flows into the underground PP module storage tank for retention. When needed, a lift pump draws the stored water up to the treatment equipment, where it is filtered and disinfected to meet quality standards, and finally delivered to irrigation or road washing applications. If heavy rainfall fills the tank, excess water is automatically discharged into the municipal stormwater network via the overflow pipe. The entire process is managed by an automated control system.
