应用范围 / Application
一体化预制泵站广泛应用于市政排水、住宅小区、工业园区、农业灌溉及环境治理等领域，主要用于雨水和污水的提升输送、应急排涝、生活供水增压以及景观水循环等场景。具有施工快捷、占地面积小、自动化程度高等优势，正逐步替代传统混凝土泵站，成为现代城市水务建设的核心设备。
Integrated prefabricated pumping stations are widely used in municipal drainage, residential communities, industrial parks, agricultural irrigation, and environmental governance. They serve key functions such as rainwater and sewage lifting and conveyance, emergency stormwater drainage, domestic water supply pressurization, and landscape water circulation. With advantages including fast installation, small footprint, and high automation, they are increasingly replacing traditional concrete pumping stations as a core solution in modern urban water infrastructure.
产品特点 / Product Features
集成水泵、管道、控制等系统于一体，结构紧凑
Integrates pumps, pipelines, control systems, and other components into one compact unit
占地面积小，施工快（1–2 天完成）
Small footprint with fast installation (typically completed within 1–2 days)
GRP 筒体，寿命 50 年以上
GRP cylinder with a service life of over 50 years
配置智能控制系统，可实现自动运行及远程监控
Intelligent control system enables automatic operation and remote monitoring
底部防淤积设计，维护简便
Anti-sedimentation bottom design ensures easy maintenance
整体密封性优异，无渗漏风险，环保可靠
Excellent integral sealing provides reliable leak-proof performance and environmental safety

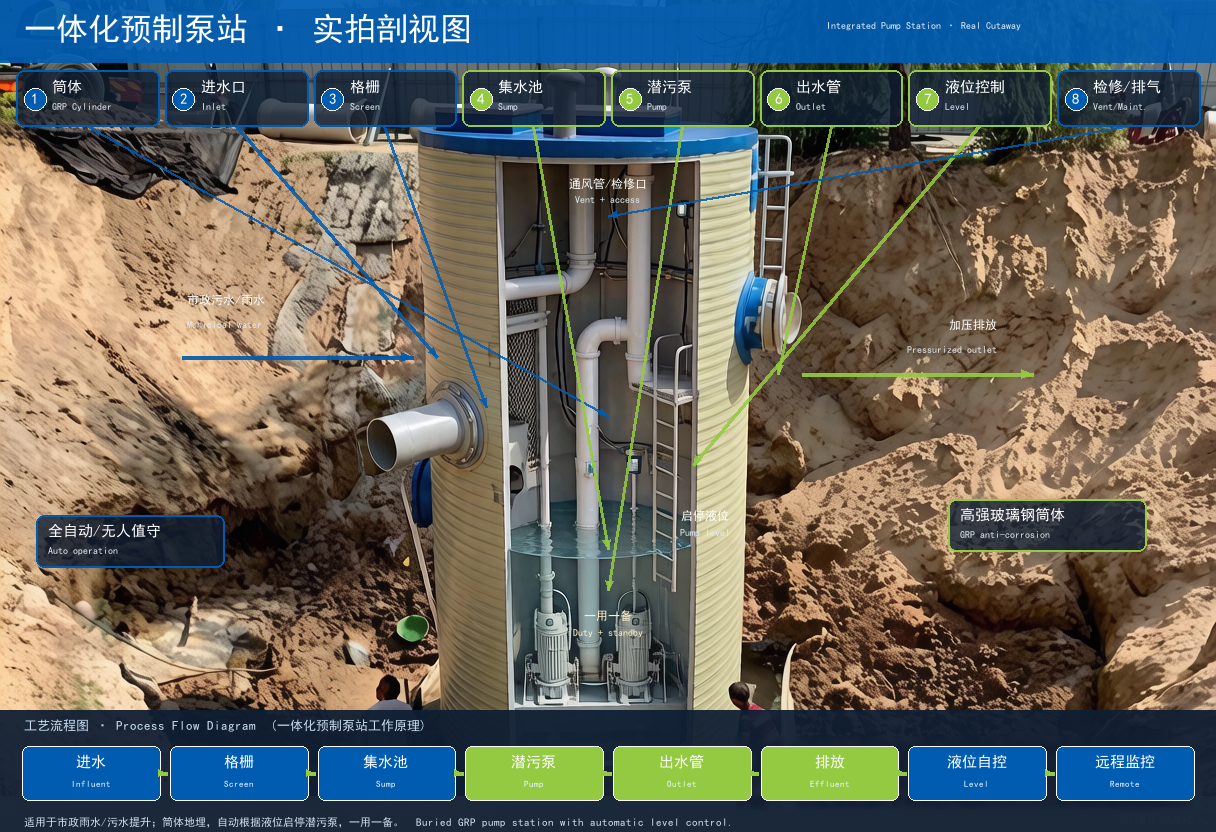

工艺流程 / Process Flow
上游重力流污水经由侧壁进水法兰进入筒体底部的集水井进行蓄水缓冲，内置的静压式或超声波液位传感器实时采集水位信号，并将数据反馈至地面 PLC 智能控制柜；系统根据预设的启停水位，自动控制潜水排污泵的运转，将污水增压后经内部导流管从顶部出水口强制排出，克服高程差接入下游市政压力管网。设备同时具备液位报警、水泵过载保护及自动轮值功能，实现了全密闭、防渗漏的无人值守自动化运行。
Gravity-fed influent enters the collection sump at the bottom of the tank through the side-wall inlet flange for buffering and storage. An integrated hydrostatic or ultrasonic level sensor continuously monitors the liquid level and transmits real-time data to the ground-mounted PLC control cabinet. Based on preset start/stop level thresholds, the system automatically activates the submersible sewage pump, which pressurizes the wastewater and forces it out through the top discharge pipe via internal guide tubes, overcoming elevation differences to discharge into the downstream municipal pressure pipeline network. Additionally, the equipment is equipped with level alarm, pump overload protection, and automatic duty-cycling functions, ensuring fully enclosed, leak-proof, and unattended automated operation.
